Storage-Tanks

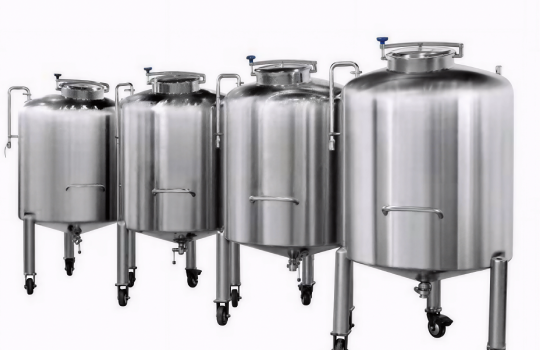

A storage tank is a robust containment vessel designed to safely hold chemicals, solvents, and process liquids across diverse industrial applications. Available in both horizontal and vertical configurations, storage tanks ensure secure handling, long-term durability, and operational flexibility. With capacities ranging from small-scale to the largest industrial requirements, these tanks are indispensable for maintaining process safety, efficiency, and reliability in pharmaceutical, chemical, and petrochemical industries. Built with accuracy and engineered for resilience, each storage tank delivers consistent performance and user-friendly operation, making it a trusted solution for demanding environments.

Features
Capacity

• Capacities ranging from 50 liters to 65 Kilo liters, with fully customizable designs

• Available in horizontal, vertical, and application-specific formats)

• Customizable nozzle orientation and mounting arrangements to suit process needs

• Ladders and railings for safe operator access

• Spring-loaded manhole covers for secure and convenient entry

• Pre-welded insulation nuts for thermal protection

• Dip pipes and spargers for fluid handling and mixing

• Thermowell compatibility for precise temperature monitoring

• Produced in ISO 9001, 14000, and 45000 certified facilities with ASME U & R stamp approvals

• Easy to install, operate, and maintain, ensuring minimal downtime

Capacity Ltrs.	Process Nozzle DN				Outlet DN K	Main Dimensions (mm)										Total Volume Ltrs.	Total Weight Kg
Capacity Ltrs.	N1	N2	N3	N4	Outlet DN K	Vessel Dia. D	H1	H2	H3	H4	H5	R	A	B	PCD	Total Volume Ltrs.	Total Weight Kg
500	80	50	80	50	100	1000	944	389	250	108	1802	425	164	200	1256	590	700
1000	80	50	80	50	100	1200	1210	565	250	106	2066	470	170	200	1460	1100	900
1600	80	50	80	50	100	1400	1425	689	250	104	2279	565	178	200	1680	1775	1350
2000	80	50	80	50	100	1400	1725	989	250	104	2579	645	178	200	1680	2215	1450
3000	80	50	80	50	100	1600	2000	1222	250	104	2850	630	212	220	1880	3353	2200
4000	80	50	80	50	100	1800	2085	1215	250	100	3035	720	227	250	2110	4400	2700
5000	80	50	80	50	150	2000	2125	1219	250	100	3075	795	227	250	2314	5500	3100
6300	80	50	80	50	150	2000	2625	1719	250	100	3575	795	227	250	2314	7000	3600
8000	80	50	80	50	150	2200	2800	1740	275	98	3773	805	227	250	2514	8830	4425
10000	80	50	80	50	150	2400	2940	1829	275	98	3880	890	270	300	2768	10925	5325
12500	80	50	80	50	150	2400	3600	2489	275	98	4573	890	270	300	2768	13780	6100
16000	80	50	80	50	150	2800	3450	2185	275	93	4678	1020	274	300	3130	17667	9050
20000	80	50	80	50	150	2800	4130	2865	275	93	5198	1020	274	300	3130	22090	10500
