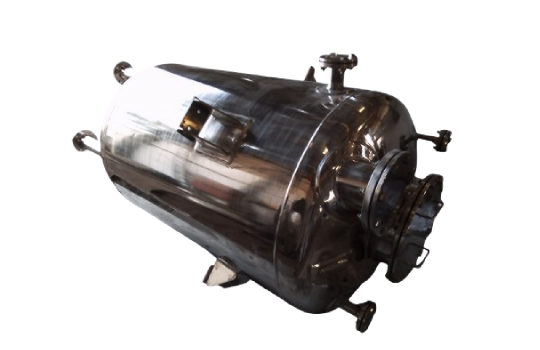

Receivers

A receiver is a refined process unit designed to facilitate the safe collection, dosing, and transfer of reactants or recovered substances in chemical processes. Recievers are positioned close to reactors to ensure smooth upstream dosing and efficient downstream recovery, making them vital for maintaining process integrity and productivity. Built with accuracy and robust engineering, each receiver delivers dependable performance, corrosion resistance, and long-term reliability, making it indispensable across pharmaceutical, chemical, and petrochemical industries

Features
Capacity

• apacities ranging from 50 liters to 20 Kilo liters, with fully customizable designs

• Stainless-steel construction for superior chemical resistance

• Minimal contamination of the cake

• Designed for seamless integration with reactors for efficient dosing and recovery

• Fabricated in compliance with ASME Section VIII and DIN 28136 standards

• Manufactured from premium materials: SS304, SS316, Hastelloy

• Low maintenance with smooth surfaces and durable lining for easy cleaning

• Produced in ISO 9001, 14000, and 45000 certified facilities with ASME U & R stamp approvals

• Easy to install, operate, and maintain, ensuring minimal downtime

Capacity (Liters)	Main Dimensions								Total Volume (Liters)	▲ Jacket Volume (Liters)	▲ Heat Transfer Area (m²)	Total Weight (Kg)	▲ Total Weight (Kg)
Capacity (Liters)	Vessel OD d1	▲ Jacket OD d2	PCD	▲ PCD	H1	H2	H3	H4	Total Volume (Liters)	▲ Jacket Volume (Liters)	▲ Heat Transfer Area (m²)	Total Weight (Kg)	▲ Total Weight (Kg)
63	508	600	652	752	762	599	400	120	88	24	0.4	360	600
100	508	600	652	752	982	799	600	260	126	37	0.8	410	650
160	600	700	752	852	1081	898	698	330	206	56	1.2	520	760
250	700	800	852	952	1240	1042	800	400	323	78	1.4	660	900
630	1000	1100	1256	1356	1507	1309	1000	595	850	160	2.9	1130	1505
1000	1200	1300	1460	1560	1761	1545	1200	700	1460	205	4.6	1630	2045
1600	1400	1500	1680	1780	2031	1611	--	975	2050	280	6.5	2130	2575
2000	1400	1500	1680	1780	2231	1811	--	1175	2344	315	7.4	2280	2275
3000	1600	1700	1880	1980	2420	2000	--	1317	3342	419	9.4	3060	3650
4000	1800	1900	2114	2214	2720	2297	--	1522	5667	511	12.1	3660	4350
5000	2000	2100	2314	2414	2790	2340	--	1534	6131	580	13.6	4410	5200
6300	2000	2100	2314	2414	3275	2840	--	2–34	7640	701	16.8	5010	5900
8000	2200	2300	2514	2614	3470	3000	--	1940	9566	766	18.8	6536	7435
10000	2400	2500	2768	2868	3650	3180	--	2064	12008	881	21.4	8450	9400
12500	2400	2500	2768	2868	4260	3780	--	2664	14624	1056	26.1	9830	10830
16000	2800	2900	3130	3230	4205	3705	--	2468	19087	1247	28.5	14020	15220
