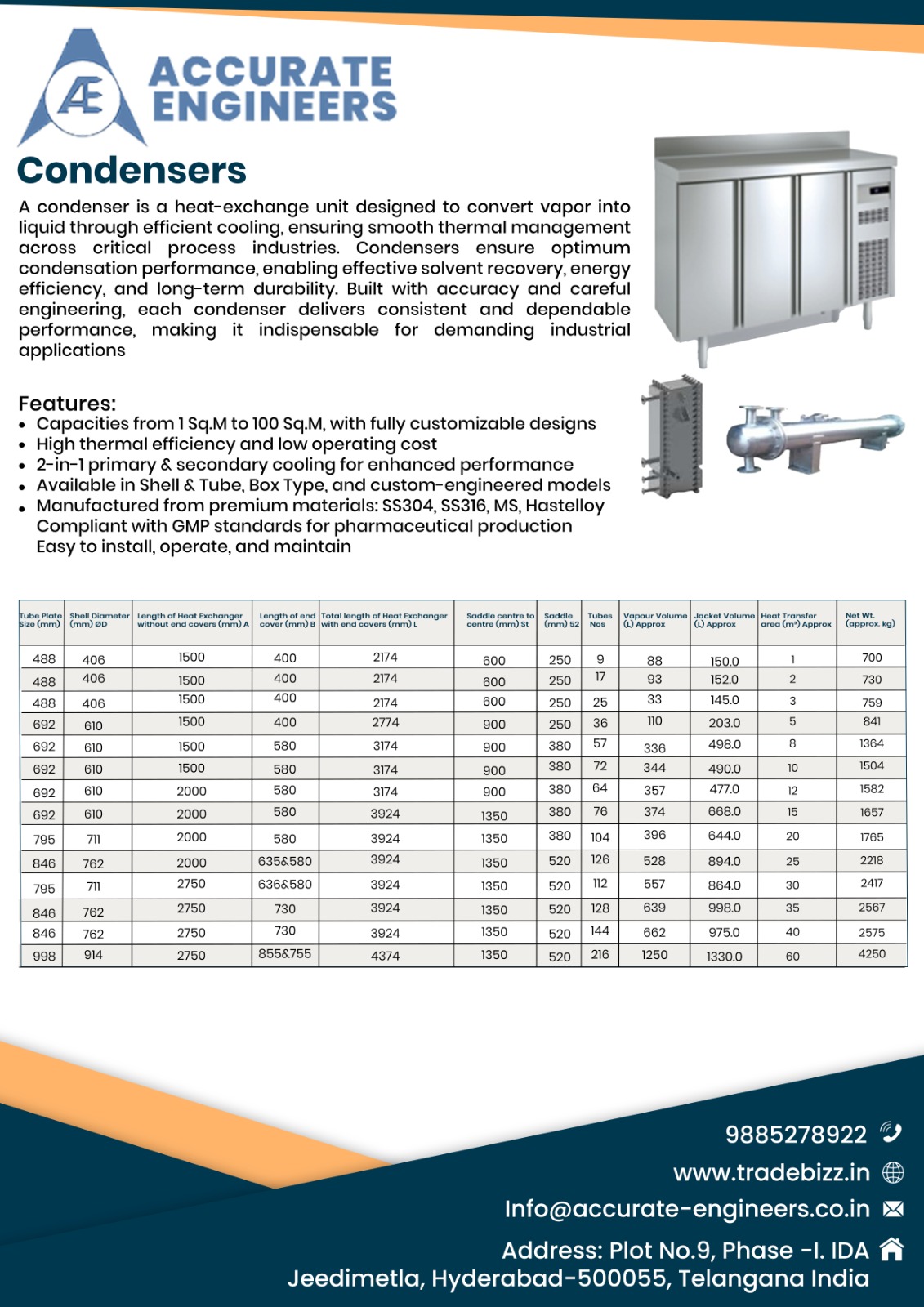

A condenser is a heat-exchange unit designed to convert vapor into liquid through efficient cooling, ensuring smooth thermal management across critical process industries. Condensers ensure optimum condensation performance, enabling effective solvent recovery, energy efficiency, and long-term durability. Built with accuracy and careful engineering, each condenser delivers consistent and dependable performance, making it indispensable for demanding industrial applications.
Condensers
• Capacities from 1 Sq.M to 100 Sq.M, with fully customizable designs
• High thermal efficiency and low operating cost
• 2-in-1 primary & secondary cooling for enhanced performance

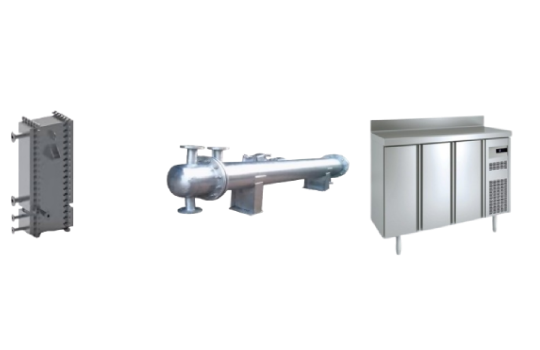

• Available in Shell & Tube, Box Type, and custom-engineered models
• Manufactured from premium materials: SS304, SS316, MS, Hastelloy
• Compliant with GMP standards for pharmaceutical production
• Easy to install, operate, and maintain
| Tube Plate Size (mm) | Shell Diameter (mm) ØD | Length of Heat Exchanger without end covers (mm) A | Length of end cover (mm) B | Total length of Heat Exchanger with end covers (mm) L | Saddle centre to centre (mm) S1 | Saddle (mm) S2 | Tubes Nos | Vapour Volume (L) Approx. | Jacket Volume (L) Approx. | Heat Transfer area (m²) Approx. | Net Wt. (approx. kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 488 | 406 | 1500 | 400 | 2174 | 600 | 250 | 9 | 88 | 150.0 | 1 | 700 |
| 488 | 406 | 1500 | 400 | 2174 | 600 | 250 | 17 | 93 | 152.0 | 2 | 730 |
| 488 | 406 | 1500 | 400 | 2174 | 600 | 250 | 25 | 33 | 145.0 | 3 | 759 |
| 692 | 610 | 1500 | 400 | 2774 | 900 | 250 | 36 | 110 | 203.0 | 5 | 841 |
| 692 | 610 | 1500 | 580 | 3174 | 900 | 380 | 57 | 336 | 498.0 | 8 | 1364 |
| 692 | 610 | 1500 | 580 | 3174 | 900 | 380 | 72 | 344 | 490.0 | 10 | 1504 |
| 692 | 610 | 2000 | 580 | 3174 | 900 | 380 | 64 | 357 | 477.0 | 12 | 1582 |
| 692 | 610 | 2000 | 580 | 3924 | 1350 | 380 | 76 | 374 | 668.0 | 15 | 1657 |
| 795 | 711 | 2000 | 580 | 3924 | 1350 | 380 | 104 | 396 | 644.0 | 20 | 1765 |
| 846 | 762 | 2000 | 635 & 580 | 3924 | 1350 | 520 | 126 | 528 | 894.0 | 25 | 2218 |
| 795 | 711 | 2750 | 636 & 580 | 3924 | 1350 | 520 | 112 | 557 | 864.0 | 30 | 2417 |
| 846 | 762 | 2750 | 730 | 3924 | 1350 | 520 | 128 | 639 | 988.0 | 35 | 2567 |
| 846 | 762 | 2750 | 730 | 3924 | 1350 | 520 | 144 | 662 | 975.0 | 40 | 2575 |
| 998 | 914 | 2750 | 855 & 755 | 4374 | 1350 | 520 | 216 | 1250 | 1330.0 | 60 | 4250 |
