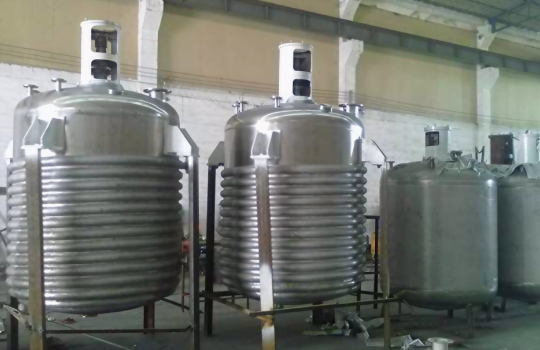

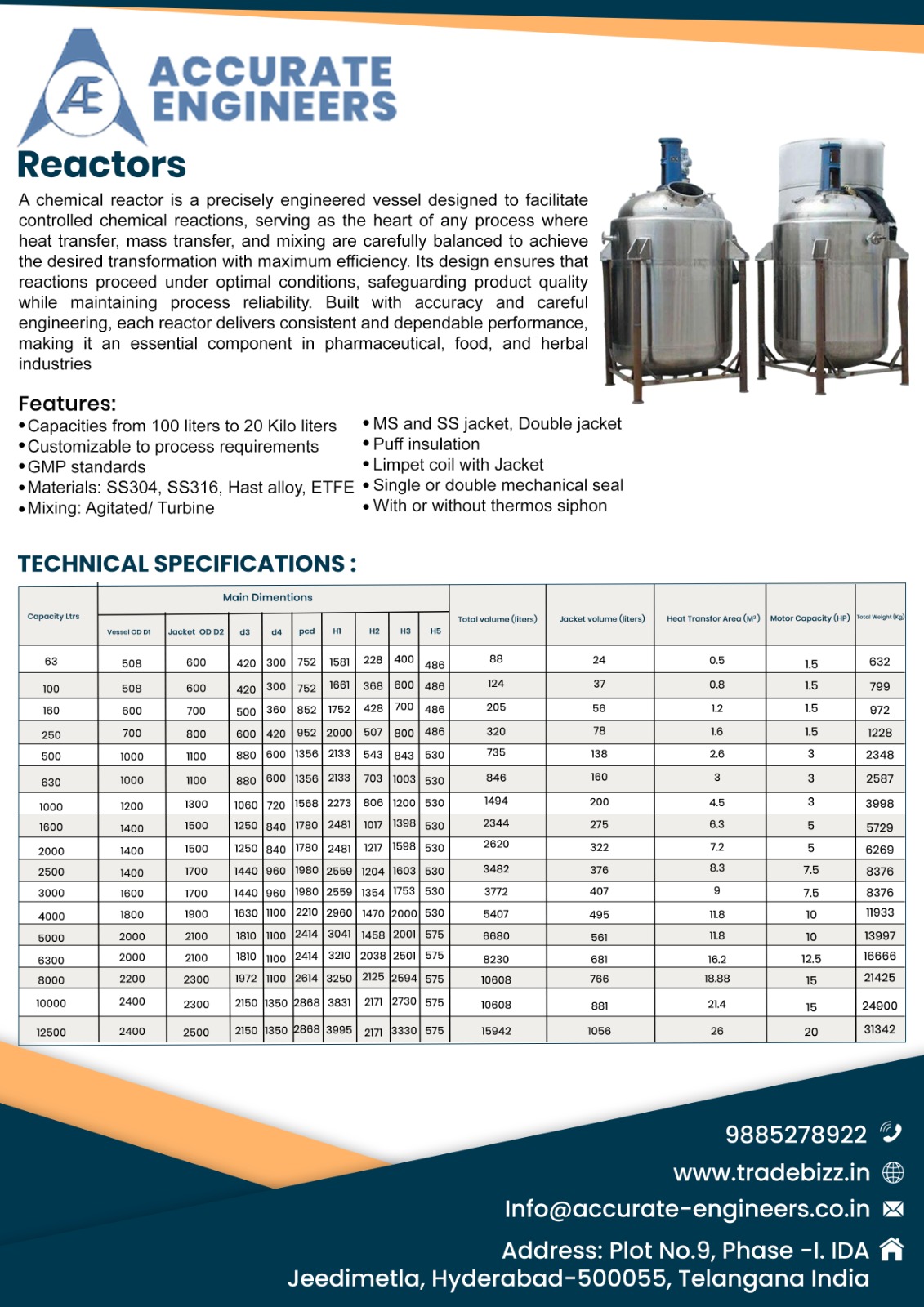

Reactors

A chemical reactor is a precisely engineered vessel designed to facilitate controlled chemical reactions, serving as the heart of any process where heat transfer, mass transfer, and mixing are carefully balanced to achieve the desired transformation with maximum efficiency. Its design ensures that reactions proceed under optimal conditions, safeguarding product quality while maintaining process reliability. Built with accuracy and careful engineering, each reactor delivers consistent and dependable performance, making it an essential component in pharmaceutical, food, and herbal industries

Features
Capacity

• Capacities from 100 liters to 20 Kilo liters

• Customizable to process requirements

• GMP standards

• Materials: SS304, SS316, Hast alloy, ETFE

• Mixing: Agitated/ Turbine

• MS and SS jacket, Double jacket

• Puff insulation

• Limpet coil with Jacket

• Single or double mechanical seal

• With or without thermos siphon

Capacity (Liters)	Main Dimensions									Total Volume (Liters)	Jacket Volume (Liters)	Heat Transfer Area (m²)	Total Weight (Kg)	Total Weight (Kg)
Capacity (Liters)	Vessel OD d1	Jacket OD d2	d3	d4	PCD	H1	H2	H3	H5	Total Volume (Liters)	Jacket Volume (Liters)	Heat Transfer Area (m²)	Total Weight (Kg)	Total Weight (Kg)
63	508	600	420	300	752	1581	228	400	486	88	24	0.5	1.5	632
100	508	600	420	300	752	1661	368	600	486	124	37	0.8	1.5	799
160	600	700	500	360	852	1752	428	700	486	205	56	1.2	1.5	972
250	700	800	600	420	952	2000	507	800	486	320	78	1.6	1.5	1228
500	1000	1100	880	600	1356	2133	543	843	530	735	138	2.6	3	2343
630	1000	1100	880	600	1356	2133	703	1003	530	846	160	3	3	2587
1000	1200	1300	1060	720	1568	2273	806	1200	530	1494	200	4.5	3	3998
1600	1400	1500	1250	840	1780	2481	1017	1398	530	2344	275	6.3	5	5729
2000	1400	1500	1250	840	1780	2481	1217	1598	530	2620	322	7.2	5	6269
2500	1600	1700	1440	960	1980	2559	1204	1603	530	3482	376	8.4	7.5	8376
3000	1600	1700	1440	960	1980	2559	1354	1753	530	3772	407	9	7.5	8376
4000	1800	1900	1630	1100	2210	2960	1470	2000	530	5407	495	11.8	10	11933
5000	2000	2100	1810	1100	2414	3041	1458	2001	575	6680	561	13	10	13997
6300	2000	2100	1810	1100	2414	3210	2038	2501	575	8230	685	16.2	12.5	16666
8000	2200	2300	1972	1100	2614	3250	2125	2594	575	10608	766	18.88	15	21425
10000	2400	2500	2150	1350	2868	3831	2171	2730	575	11980	881	21.4	15	24900
12500	2400	2500	2150	1350	2868	3995	2771	3330	575	15942	1056	26	20	31342
